Module: renderers > basic > colored_rectangle
Description
Renders a quad (rectangle). Generates UV coordinates for all four corners. Can be colored, resized rotated around an axis.

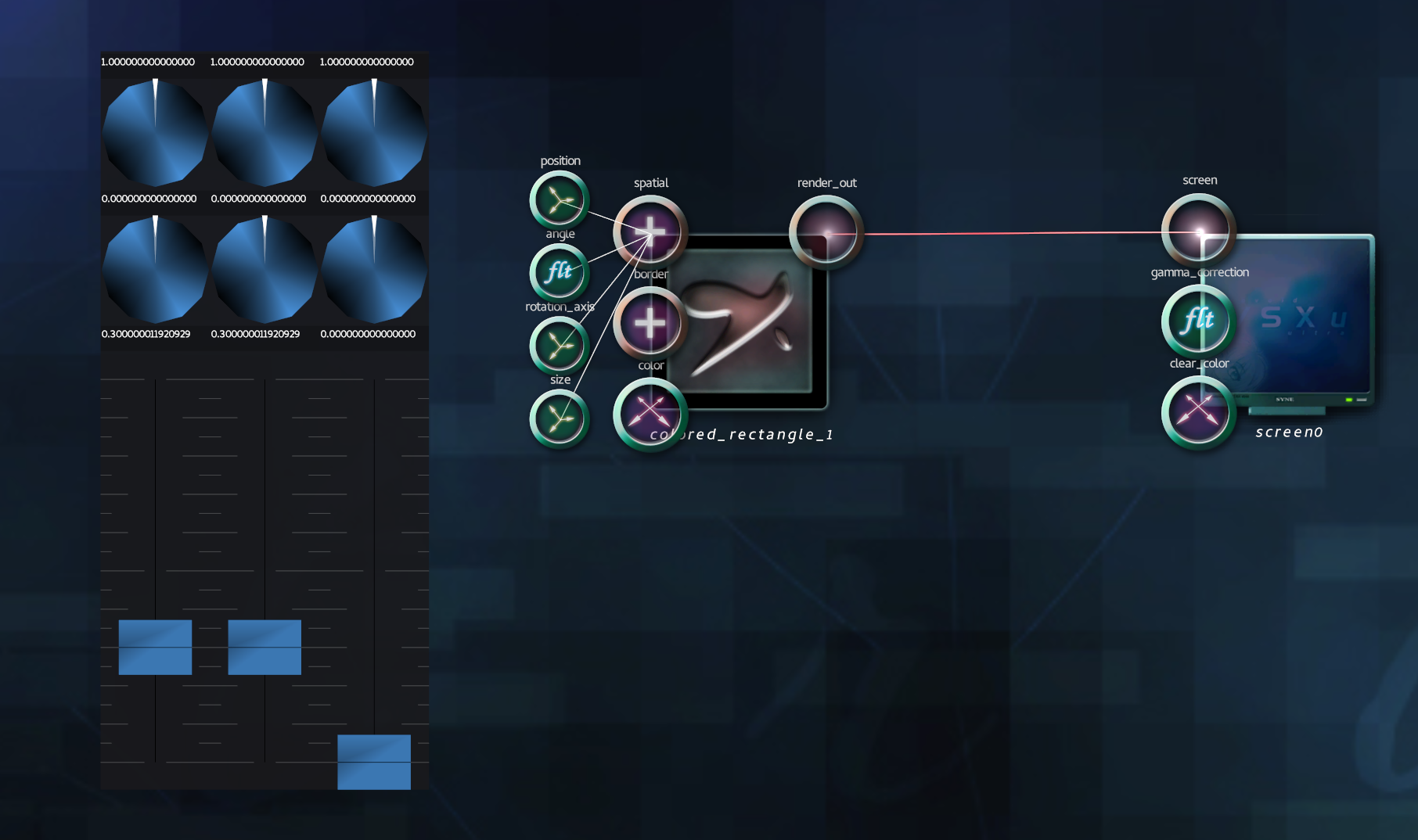

Here a colored rectangle has been connected directly to the screen. Its size has been reduced to 0.3, 0.3.
See also:
Input Parameters
spatial
spatial.position
Type: float3
Connections: Allowed
A 3-dimensional position. X, Y and Z.
spatial.angle
Type: float
Connections: Allowed
Rotate the rectangle around the rotation axis. 1.0 is one revolution.
spatial.rotation_axis
Type: float3
Connections: Allowed
A 3-dimensional axis of rotation.
spatial.size
Type: float3
Connections: Allowed
Size, X and Y. Z is ignored.
border
border.border_enable
Type: enum
Connections: Enums do not support connections.
Draws a border using the line drawing mechanism in OpenGL.
Enumeration possible values:
- no
- yes
border.border_width
Type: float
Connections: Allowed
Controls the border width. Note that since this is rendered as OpenGL lines, there is an upper limit to how thick it can be.
border.border_color
Type: float4
Connections: Allowed
Default Controller: controller_col
RGBA color of the border line.
color
Type: float4
Connections: Allowed
Default Controller: controller_col
Color, RGBA is used.
Output Parameters
render_out
Type: render
Connections: Allowed
